Micro magnet
We supply various shapes,size and materials micro magnets
We offer a wide variety of micro magnet products and services. We are good at micro magnet, normly very small and precise magnets. We can supply Alnico, NdFeB, SmCo, ferrite and other materials with very good tolerances. The size(diameter or length) could be at 0.1-10mm, and the tolerance could be +/-0.005~+/-0.02mm with various shapes.
Mini magnet / Micro magnet, we can make the dimension and tolerance with customer's request.
1. Ring Magnets
Inner hole size: <D0.6mm
Tolerance:+/-0.01mm
Thin size>=0.4mm
2. Mini Rod Magnets
Dia>=0.2mm-0.6mm
Tolerance:+/-0.01mm
3. Thin Block Magnets
Thin size>=0.5mm
Tolerance:+/-0.005mm
We offer a wide variety of micro magnet products and services. We are good at micro magnet, normly very small and precise magnets. We can supply Alnico, NdFeB, SmCo, ferrite and other materials with very good tolerances. The size(diameter or length) could be at 0.1-10mm, and the tolerance could be +/-0.005~+/-0.02mm with various shapes.
Mini magnet / Micro magnet, we can make the dimension and tolerance with customer's request.
1. Ring Magnets
Inner hole size: <D0.6mm
Tolerance:+/-0.01mm
Thin size>=0.4mm
2. Mini Rod Magnets
Dia>=0.2mm-0.6mm
Tolerance:+/-0.01mm
3. Thin Block Magnets
Thin size>=0.5mm
Tolerance:+/-0.005mm

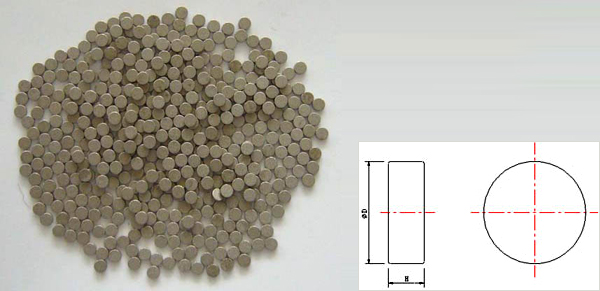

Micro Disc magnet
Application:
Usually for medical, sensor, precision instrument, precision measurement
Standard size & tolerance:
Material:
Smco, Ndfeb, Ferrite…etc
Usually for medical, sensor, precision instrument, precision measurement
Standard size & tolerance:
| Outer diameter(mm) | Height(mm) | PointednessR&C | |
| Size | D0.2---D2.0 | 0.2-15 | Based on request |
| Tolerance | +/-0.005----+/-0.02 | +/-0.005----+/-0.02 | R+/-0.01 |
Material:
Smco, Ndfeb, Ferrite…etc

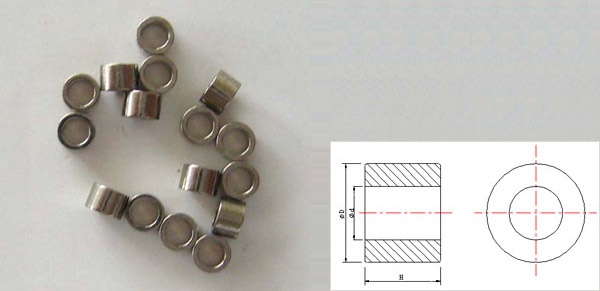

Micro ring magnet
Application:
Usually for medical, sensor, precision instrument, precision measurement
Standard size & tolerance:
Material:
Smco, Ndfeb, Ferrite…etc
Usually for medical, sensor, precision instrument, precision measurement
Standard size & tolerance:
| Outer diameter (mm) | Inner diameter(mm) | Height(mm) | |
| Size | D0.8---D10 | D0.2—D3.0 | 0.2-15 |
| Tolerance | +/-0.005----+/-0.05 | +/-0.005----+/-0.02 | +/-0.005----+/-0.05 |
Material:
Smco, Ndfeb, Ferrite…etc

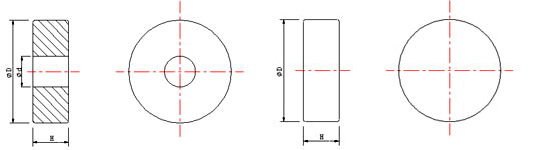

Micro magnet for Stepper motors of Automobil meter
Micro magnet for the Stepper motors automob ile meter, and the material is SMCO or Ndfeb.
Standard size & tolerance:
Standard size & tolerance:
| Outer diameter (mm) | Inner diameter(mm) | Height(mm) | |
| Size | D1.3---D2.7 | D0.2—D3.0 | 0.4---1.4 |
| Tolerance | +/-0.005----+/-0.03 | +/-0.01---+/-0.03 | +/-0.005---+/-0.02 |
